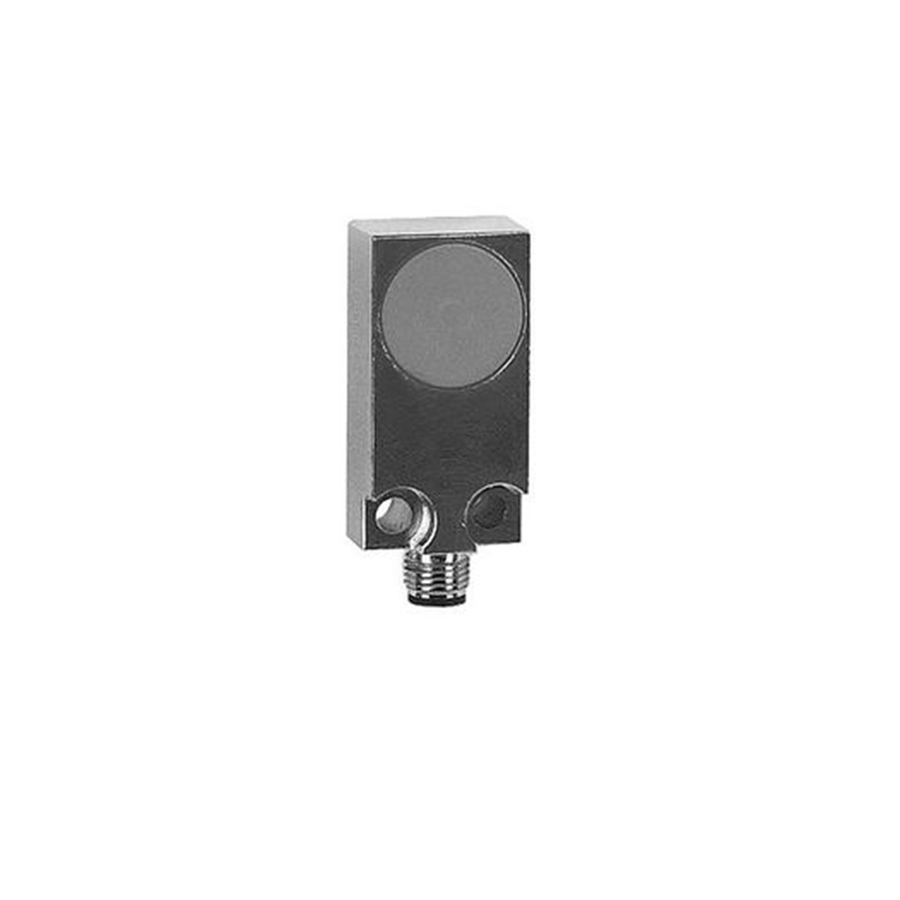

IFFM12P17A3/S05L Induktív érzékelő

 general data

mounting type flush

nominal sensing distance Sn 4 mm

hysteresis 3 ... 20 % of Sr

output indicator LED red

electrical data

switching frequency < 2 kHz

voltage supply range +Vs 10 ... 30 VDC

current consumption max. (no load) 10 mA

output circuit PNP make function (NO)

voltage drop Vd < 2 VDC

output current < 200 mA

short circuit protection yes

reverse polarity protection yes

mechanical data

type rectangular

material (sensing face) PBT

housing material brass nickel plated

dimension 12 mm

housing length 23,5 mm

connection types connector M5

ambient conditions

operating temperature -25 ... +75 °C

protection class IP 67
