Paraméterek
| Csatlakozás | M8 |
| Érzékelési távolság | 2 m |
Leírás

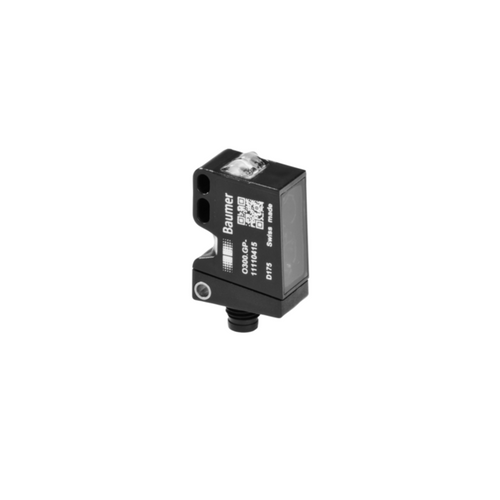

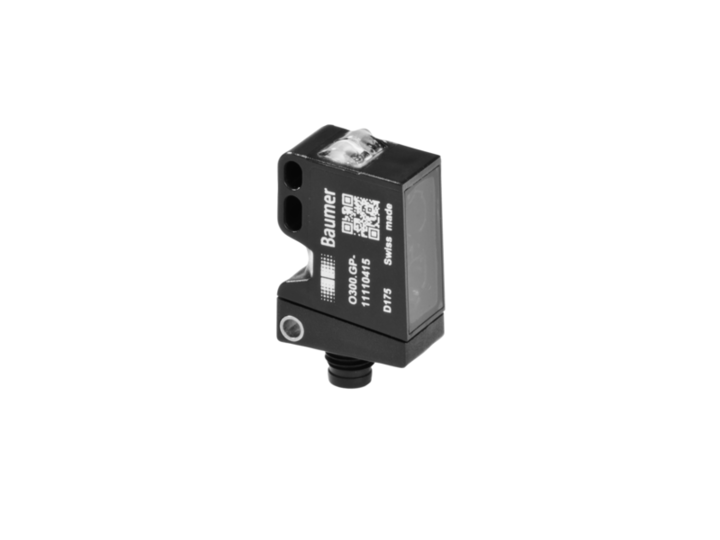

Type Light barrier
Version Standard object detection
Light source Pulsed PinPoint LED
Background position Sde 30 … 300 mm
Scanning range Sa 90% ... 85% Sde
Power on indication LED green
Light indicator LED yellow
Sensing distance adjustment qTeach / external
Wave length 630 nm
Suppression of reciprocal influence Yes
Alignment optical axis < 2°
Electrical data
Response time / release time < 0,49 ms
Voltage supply range +Vs 10 … 30 VDC
Current consumption max. (no load) 45 mA
Current consumption typ. 30 mA
Voltage drop Vd < 3 VDC
Output function Light / dark operate
Output circuit Push-pull
Output current < 100 mA
Short circuit protection Yes
Reverse polarity protection Yes
Mechanical data
Width / diameter 12,9 mm
Height / length 32,3 mm
Depth 23 mm
Type Rectangular
Housing material Plastic (ASA, PMMA)
Front (optics) PMMA
Connection types Connector M8 4 pin
Ambient conditions
Protection class IP 67
Operating temperature -25 … +60 °C
