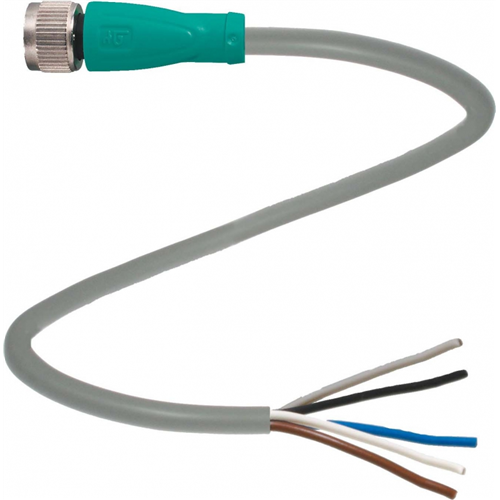

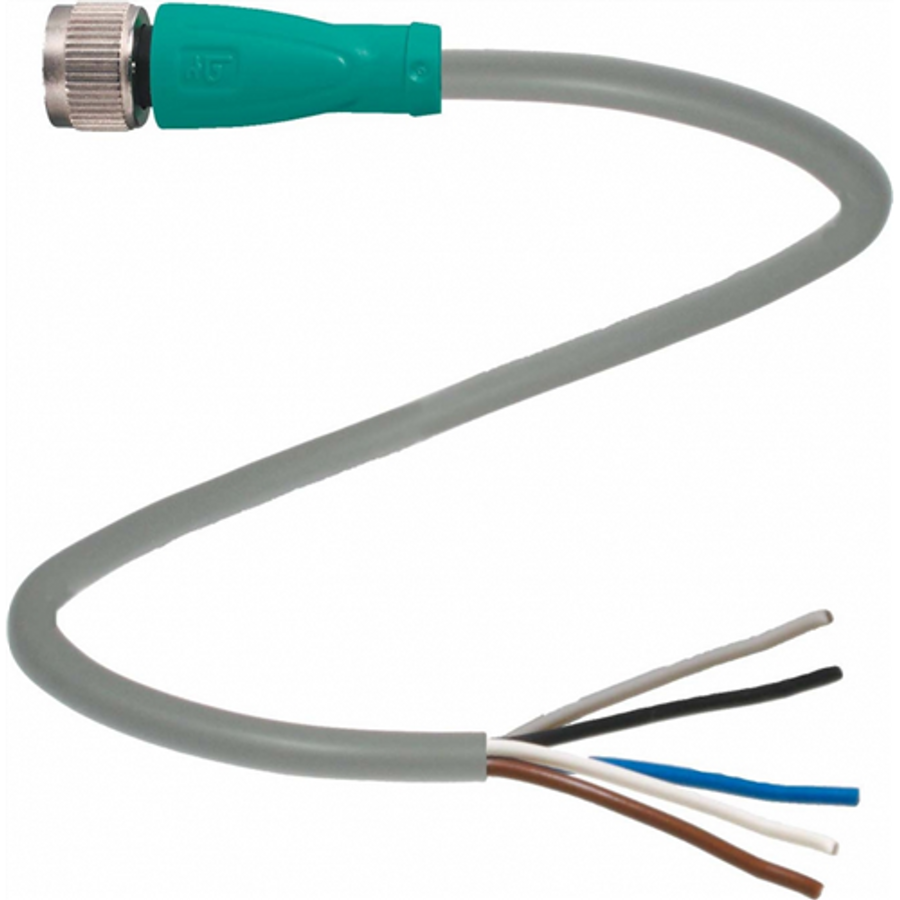

V15-G-5M-PUR Szenzorkábel M12 anya egyenes 5 m, 5 p- 0,34 mm2 kábel

General specifications
Number of pins 5
Connection 1 socket
Construction type 1 straight
Threading 1 M12
Connection 2 cable end
Electrical specifications
Operating voltage max. 48 V AC / 60 V DC
Operating current max. 4 A
Volume resistance < 5 mΩ
Compliance with standards and directives
Standard conformity
Degree of protection EN 60529:2000
Flammability Grip: UL 94
Specification connector M12 x 1 : IEC 61076-2-101
Ambient conditions
Ambient temperature Body: -40 ... 90 °C (-40 ... 194 °F)
cable, fixed: -40 ... 80 °C (-40 ... 176 °F)
cable, flexing: -30 ... 80 °C (-22 ... 176 °F)
Pollution degree 3
Mechanical specifications
Contact elements spring-loaded contact socket
Pin diameter 1 mm
Degree of protection IP67 / IP68 / IP69k
Cable code Li 9Y 11YM 5 x 0.34
Material
Contacts CuSn / Au
Contact surface Au
Body TPU, black
Cable PUR
Slotted nut Diecast zinc
Core insulation PP
Cable fine-strand, flexible
Sheath diameter ∅ 4.8 mm
Bending radius > 10 x cable diameter, moving
> 8 x cable diameter, flexible
Color grey
Number of cores 5
Core cross-section 0.34 mm2
Conductor construction 19 x 0.15 mm ∅
Length 5 m
Flammability
Contact carrier HB
Housing V-2
